The RVP-DP-B Permanent Magnet Centrifugal Pump is designed for efficient water circulation in heating and hot water systems. It is suitable for applications such as air source heat pump systems, solar heating systems, and domestic hot water supply. With advanced permanent magnet technology, the pump delivers stable performance, energy efficiency, and reliable operation in various residential and heating applications.
1.Air source heat pump system
2.Solar heating system
3.Domestic hot water system, etc
Operation Condition
| Model | RVP-DP-B06-22 Pro | RVP-DP-B08-36 |
|---|---|---|
| Voltage | AC 220~240V/50Hz | AC 220~240V,50/60Hz |
| Liquid PH | 6.5~8.5 | 6.5~8.5 |
| Maximum particle size | 0.1mm | 0.1mm |
| Medium temperature | 0°C ~ 90°C | -20 ~ 90°C |
| Ambient temperature | 0°C ~ 40°C | -20 ~ 55°C |
| Voltage fluctuation range | ±10% | ±10% |

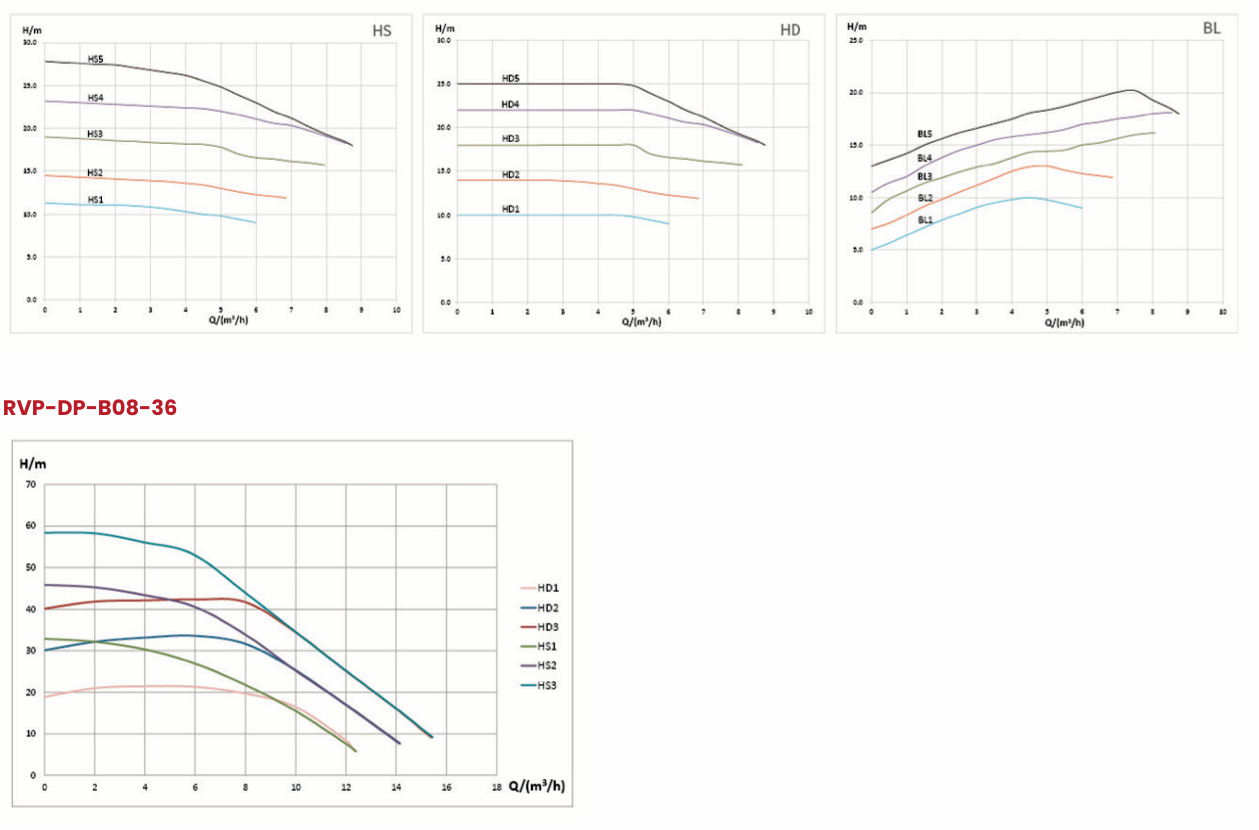

Technical Parameters
| Model | Max. Flow | Max. Head | Rated Flow | Rated Head | Max. Power | Rated Voltage | Max. RPM | Inlet & Outlet Size |
|---|---|---|---|---|---|---|---|---|
| (m3/h) | (m) | (m3/h) | (m) | (W) | (V) | (r/min) | (Internal Thread) | |
| RVP-DP-B06-22 Pro | 8.5 | 28 | 6 | 22 | 700 | 220~240 | 5000 | G1" |
| RVP-DP-B08-36 | 15 | 58 | 8 | 36 | 1800 | 220~240 | 3500 | G1 1/2" |
