The RVP-DP-MHI Horizontal Multi-Stage Centrifugal Water Pump is designed for efficient and reliable water circulation with a durable stainless steel water-passing structure and a multi-stage impeller for high head performance. It features a high-quality mechanical seal and NSK bearings that ensure long service life, low noise, and easy maintenance. With IP54 protection and a sturdy painted exterior, the pump delivers stable operation in demanding environments and supports clean water or water-glycol mixtures at temperatures up to 110 °C.
1.Water-passing parts are made of stainless steel
2.Multi-stage impeller, high head
3.High quality mechanical seal, reliable and easy to maintain
4.NSK bearings, long life, low noise
5.Painted appearance, simple and elegant
Technical Parameters
| Power supply | 1~220V/50Hz, 3~380V/50Hz |
| Power supply | Single-phase motor with thermal protection, three-phase motor without |
| IP protection | IP54 |
| Insulation | F |
| (RH) Humidity | ≤95% |
| System pressure | 1MPa |
| Certificate | CE |
| Ambient temperature | 0~40°C |
| Liquid temperature | 0~90°C (clean water), -15~110°C (Water + ethylene glycol ≤50% mixture) |
Product Parameter
| Model | EVP-DP-MHI-200 | EVP-DP-MHI-400 | EVP-DP-MHI-800 | EVP-DP-MHI-1600 |
|---|---|---|---|---|
| Power Supply | 1-220V/50Hz & 3-380(220)V/50Hz | 3-380(220)V/50Hz | ||
| Transmission Medium | Clean Water | |||
| Medium Temperature | 0~90°C (Clean water), -15~110°C (Water + ethylene glycol ≤50%) mixed liquid | |||

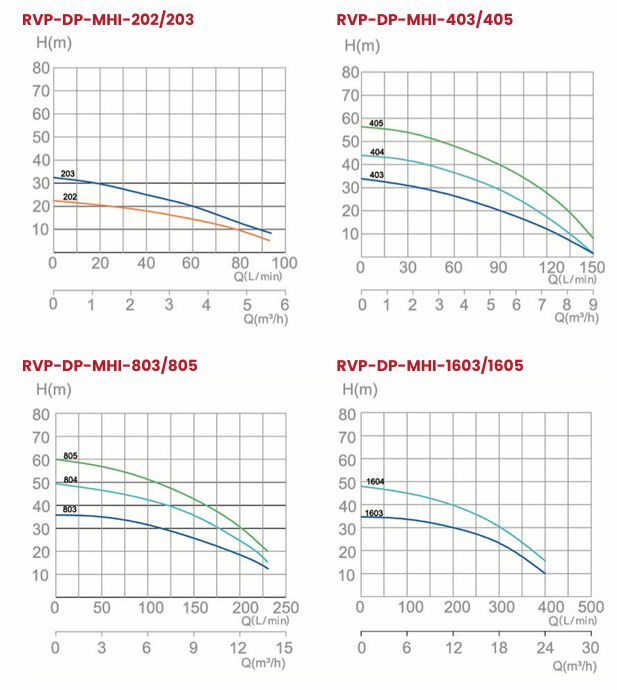

| Maximum Head (m) | 69 | 65 | 59 | 48 |
| Maximum Flow (L/min) | 83 | 133 | 216 | 433 |
| Maximum Pressure (bar) | 10 | |||
| Protection Level | IP54 | |||
| Pump Body | Stainless Steel | |||
| Impeller | Stainless Steel | |||
| Shaft | Stainless Steel | |||
| Mechanical Seal | Graphite & Silicon Carbide | |||
| Model | Rated Power (kW) |
Rated Current | ΦD1 ΦD2 | A | B | C | D | E | F | 1-220V | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-220V | 3-220V | 3-380V | [RP] | 1-220V | 3-380V | 1-220V | 3-380V | 1-220V | 3-380V | 1-220V | 3-380V | ||||||
| [mm] | |||||||||||||||||
| RVP-DP-MHI-202 | 0.37 | 2.58 | 1.89 | 1.09 | 1" | 1" | 205 | 85 | 85 | 375 | 375 | 205 | 198 | 90 | 90 | 107 | 9 |
| RVP-DP-MHI-203 | 0.55 | 3.46 | 2.56 | 1.48 | 1" | 1" | 205 | 85 | 85 | 375 | 375 | 205 | 198 | 90 | 90 | 107 | 9 |
| RVP-DP-MHI-403 | 0.55 | 3.46 | 2.56 | 1.48 | 1¼" | 1" | 201 | 85 | 85 | 371 | 371 | 205 | 198 | 90 | 90 | 104 | 10.4 |
| RVP-DP-MHI-404 | 0.75 | 4.85 | 3.01 | 1.74 | 1¼" | 1" | 250 | 100 | 100 | 448 | 448 | 210 | 198 | 90 | 90 | 153 | 13.6 |
| RVP-DP-MHI-405 | 1.1 | 6.55 | 4.4 | 2.54 | 1¼" | 1" | 250 | 100 | 100 | 448 | 448 | 210 | 213 | 90 | 90 | 153 | 15.4 |
| RVP-DP-MHI-803 | 1.1 | 6.55 | 4.4 | 2.54 | 1½" | 1¼" | 212 | 100 | 100 | 410 | 410 | 210 | 213 | 90 | 90 | 115 | 14.5 |
| RVP-DP-MHI-804 | 1.5 | 9.15 | 6.1 | 3.52 | 1½" | 1¼" | 272 | 145 | 145 | 500.5 | 500.5 | 227 | 230 | 100 | 100 | 175 | 18.3 |
